This item is dropshipped and comes straight from the manufacturer.
4k Tach available in Performance White, Performance Black and Aviator Gauges! Please leave a note at checkout if you would like a 4k tach instead!
Need help installing? Watch this video, click here!

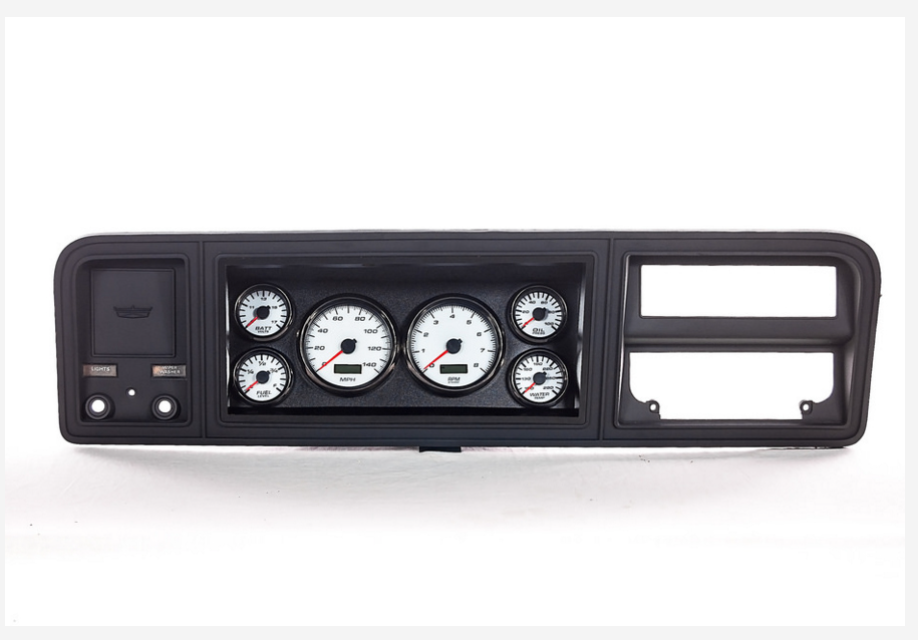

NVU brings you a new way to install aftermarket gauges in your 73-79 Ford Truck dash. Ditch those old square gauges and go with a new look altogether. NVU's exclusive CNC laminate brackets and cover pieces create the look you want while providing the info on the vitals you need. Create the look you want while retaining most fo the factory dash appearance, switches and layout. The exclusive CNC laser-cut mounting bracket features turn signals, hi beam and warning lamps, designed to match the factory viewing angle to kelp you keep your eye on the vitals. Requires removal of factory bezel "uprights" and installation of NVU cover pieces (included) 6 gauge kits include a factory-match 73-10 ohm fuel gauge to match standard tanks. Polished stainless steel bezels bring some pop to the dash.
Easy programming and setup
Built-in indicators (Turn signal, hi beam, warning lights)
3-7/16" Speedometer 140 MPH programmable with 1 auxiliary input
3-7/16" Tachometer 8,000 RPM with TWO auxiliary inputs
2-1/16" Fuel gauge, programmable (0-90, 240-33, 73-10, 40-250, 0-30, 10-180, 20-150 ohm settings)
Temperature gauge 140-280 F
Oil pressure gauge 0-100 PSI
Voltmeter 9-17 V
2 ea AMP connector harnesses
2 ea Programming buttons
Oil pressure sender 99100-04 (1/8-27 NPT, 240-33 Ω)
Temperature sender 99230-04 (1/8-27 NPT, NVU hi match)
73-79 F100 Mounting bracket
GAUGE INSTRUCTION BOOKLET
*speed sender may be required check your application
